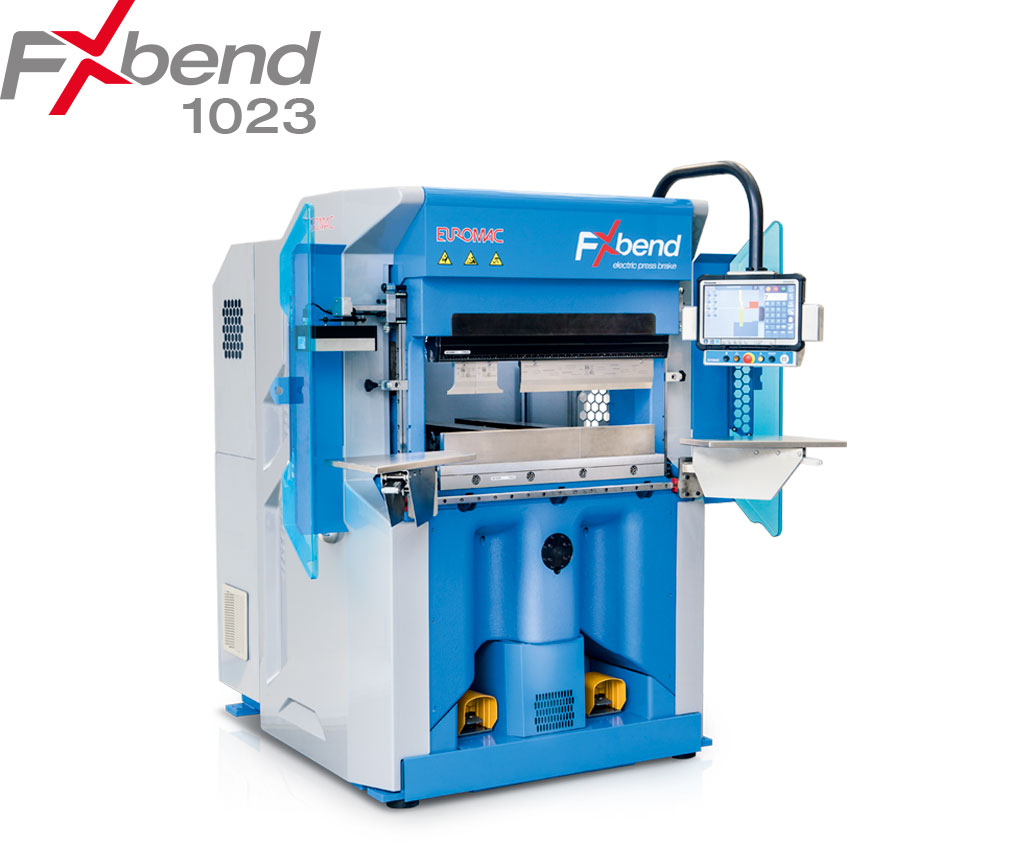

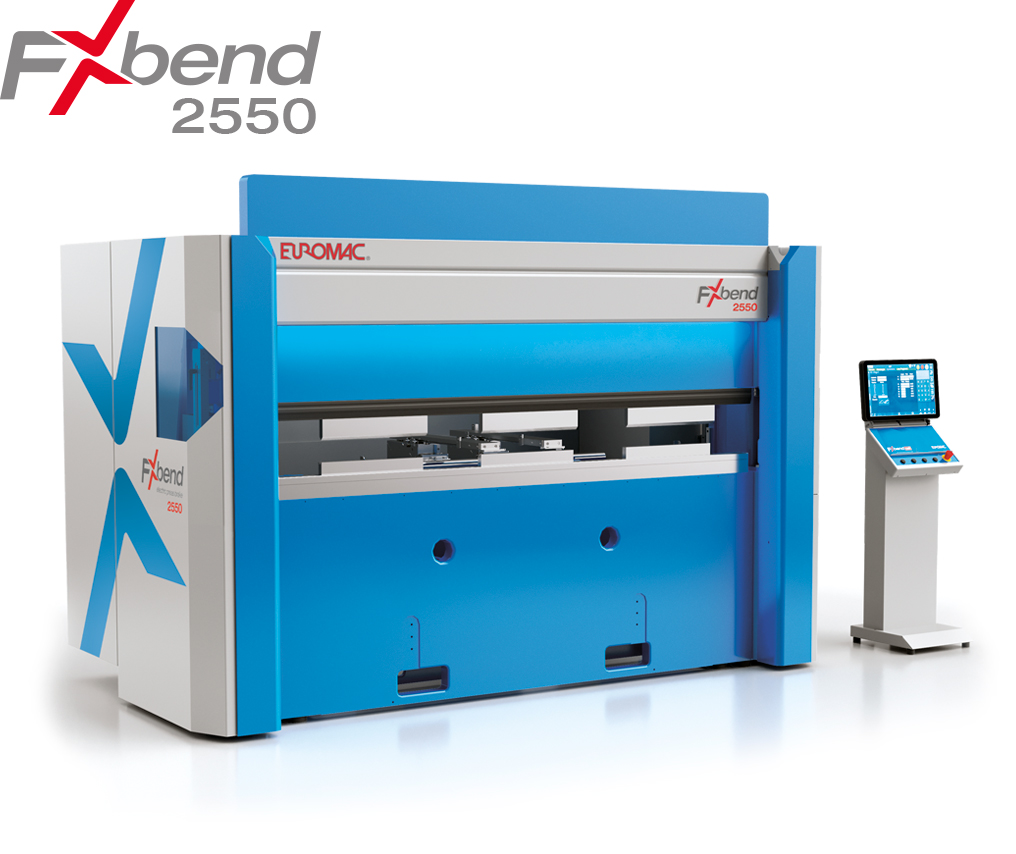

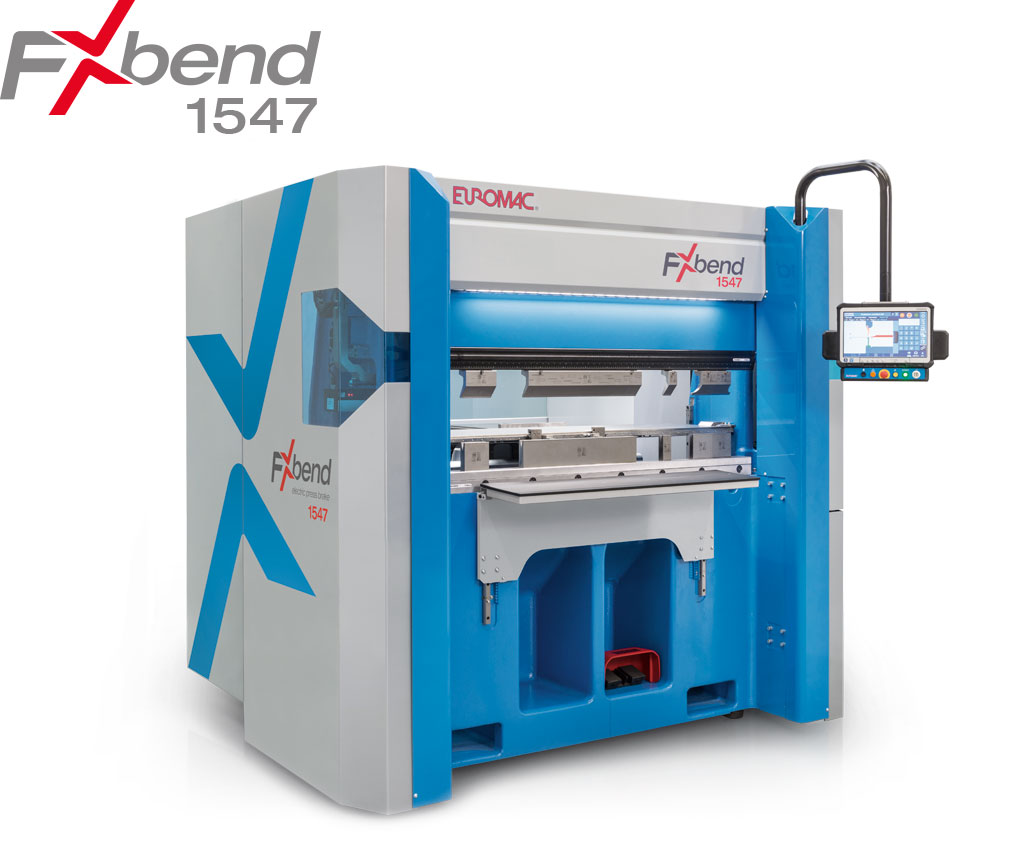

Electric press brake
Innovation, reliability and productivity. If you had to define FX bend through three words would be certainly these. The Euromac range of electric press-brakes will promptly reply to your production requirements distinguishing itself for high precision and for elevated performances.
Technology
Innovation, reliability and productivity. If you had to define FX Bend through three words would be certainly these.
Innovation, because the force of the press is in extension during bending with the result of having greater strength and more precision in machining.
Reliability thanks to an extremely robust monoblock structure in Meehanite than any bending machine with an assembled structure.

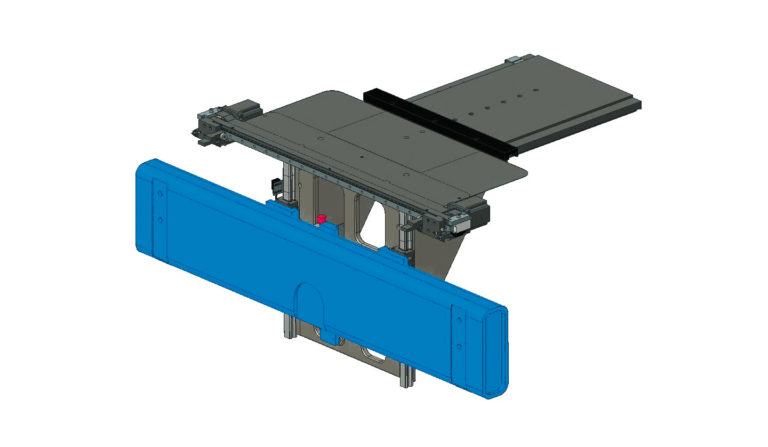

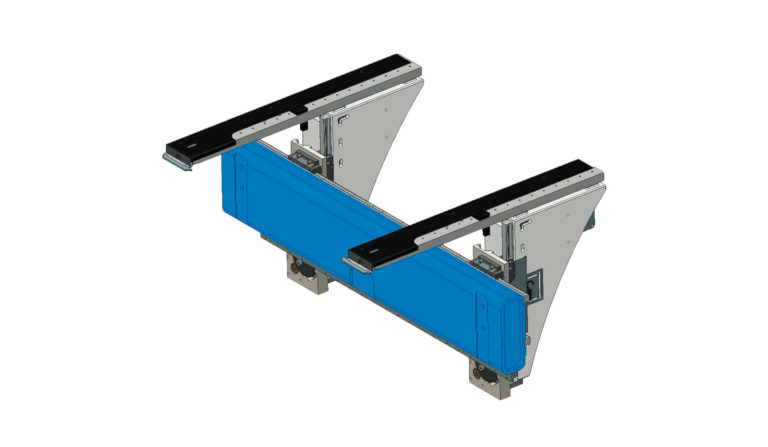

High-level productivity with backgauges at 4 and 6-axis, fully automatic and with independent movements able to reach speeds of up to 1000 mm / sec which together with high decelerations ensure maximum productivity.
Control unit 21″
• Anti glare touch-screen LCD
• Water and dust resistant (IP65)
• Up to 9 hours battery power backup
• Windows® 10
• USB and WiFi connection
• DXF import files
• 2,5 D Graphic visualization
• 3 D Graphic visualization (optional)

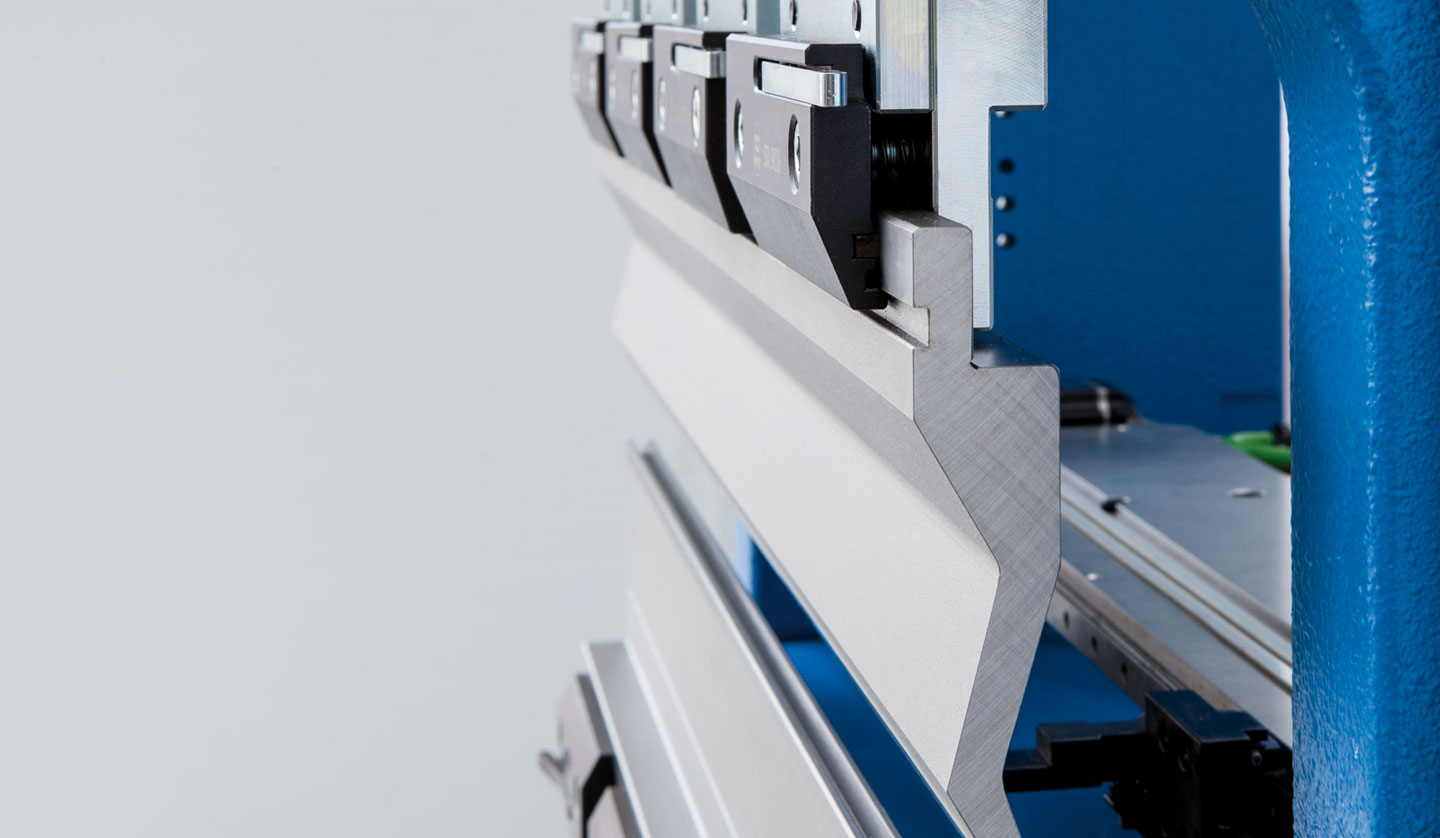

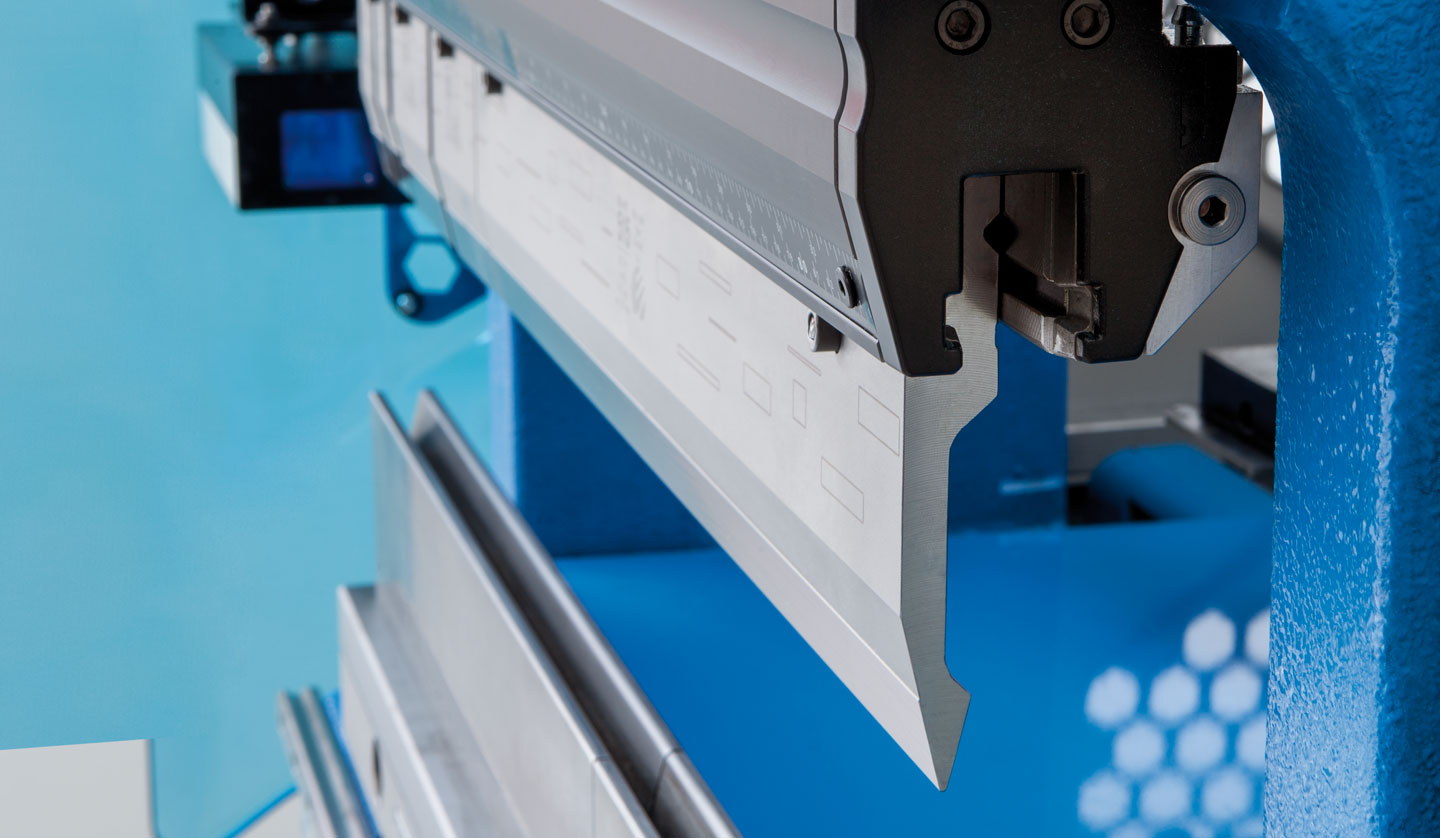

Tools
FMTE 10
- 8 tools up to Ø 12,7 mm (A Type)
- 2 tools up to Ø 24 mm (FMTE6 Type)
- Adjustable punch length up to 9 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 6 mm
- Antimark magnetic kit option
- Adjustable striping spring force according to material and thickness
FMTE 4
- 4 tools up to Ø 31,7 mm (B Type)
- Adjustable punch length up to 11 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 12,7 mm
- Adjustable striping spring force according to material and thickness
Video
Playlist
Optionals
Combined brushes and balls tables
Our tables are equipped with Brushes to evitate to mark the sheet during the moving,we can make a combination with balls, recomended in case of sheets over 50 kg.
Roller conveyor for ejecting parts
Roller conveyor 1000×1200 for ejecting parts from the chute door with settable length up to 4000mm c/w plastic box with wheels 570×370 H.210.
