Bending machines
Technology
With Euromac you get the maximum bending flexibility

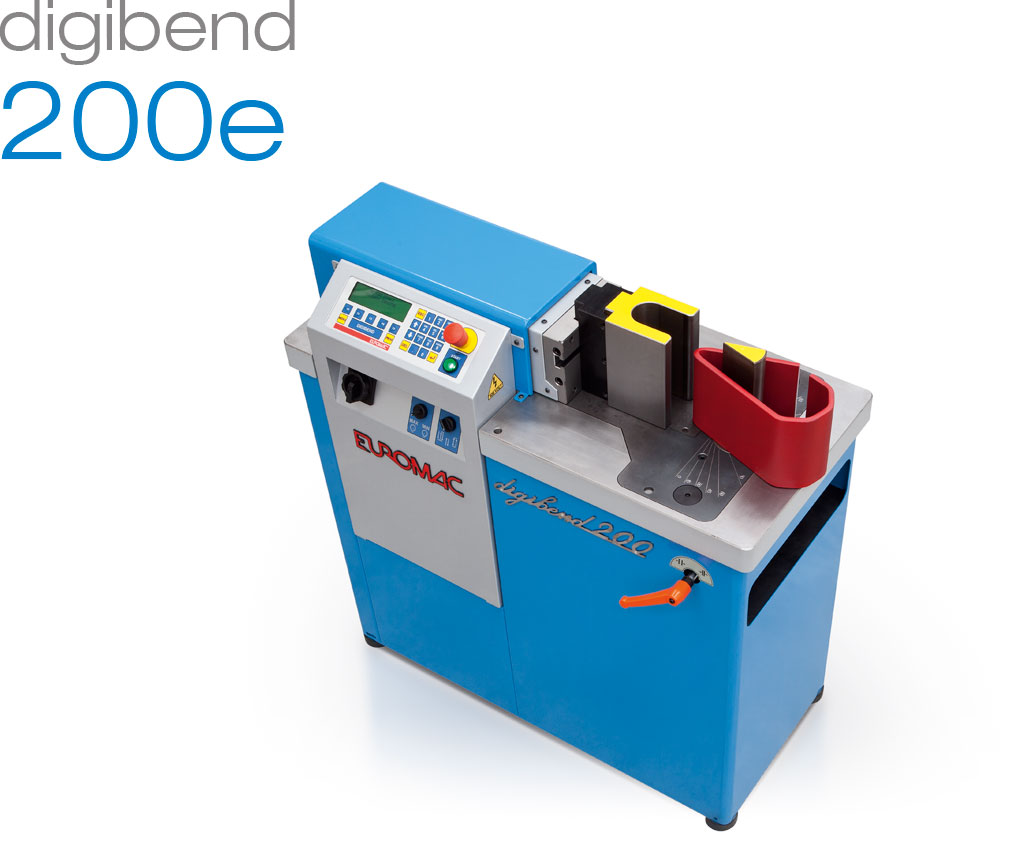

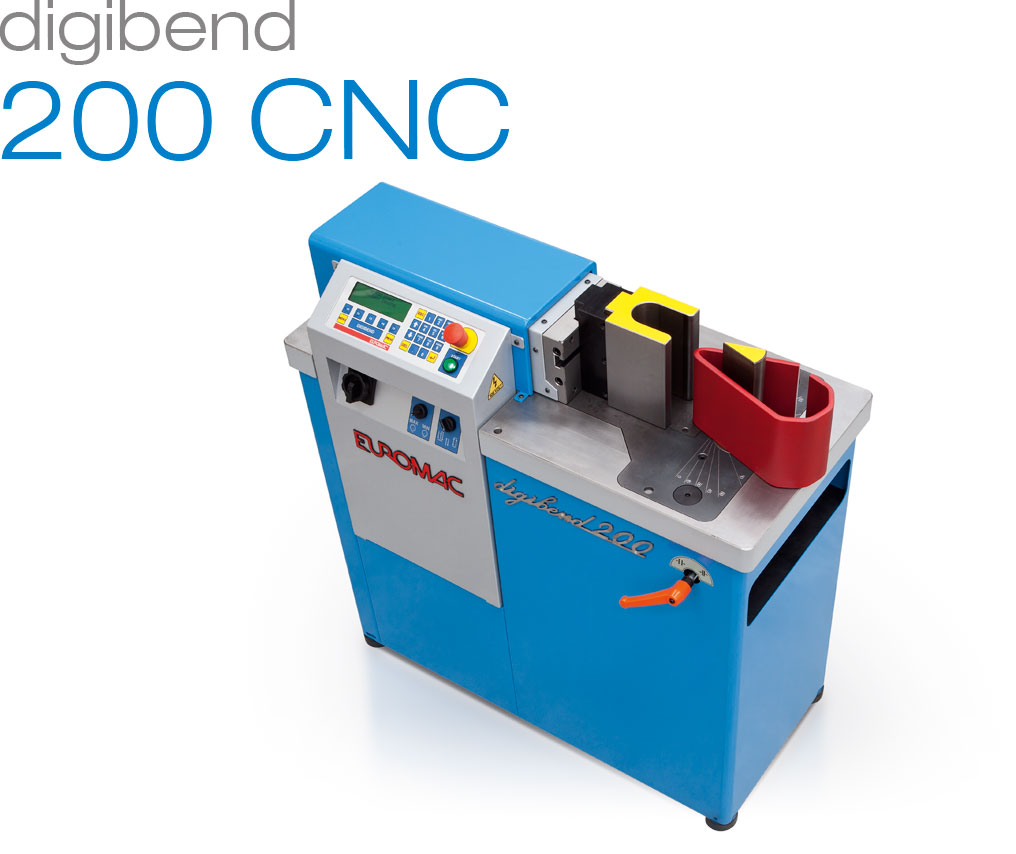

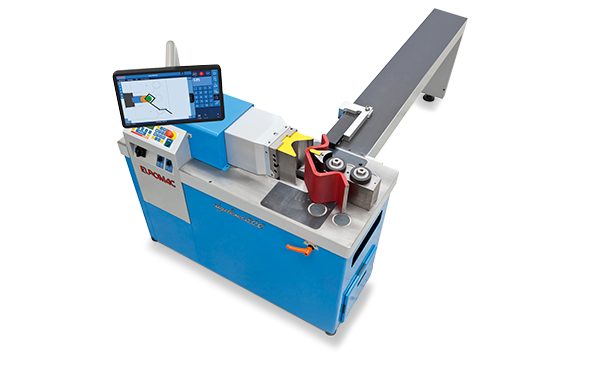

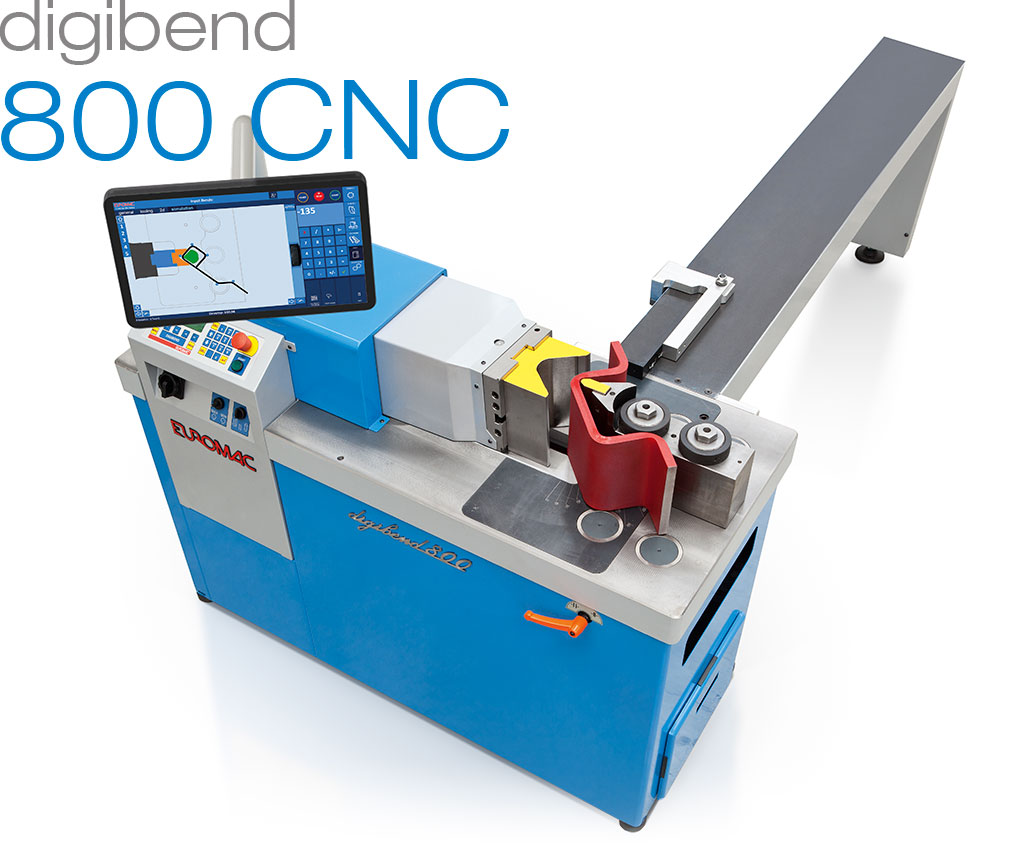

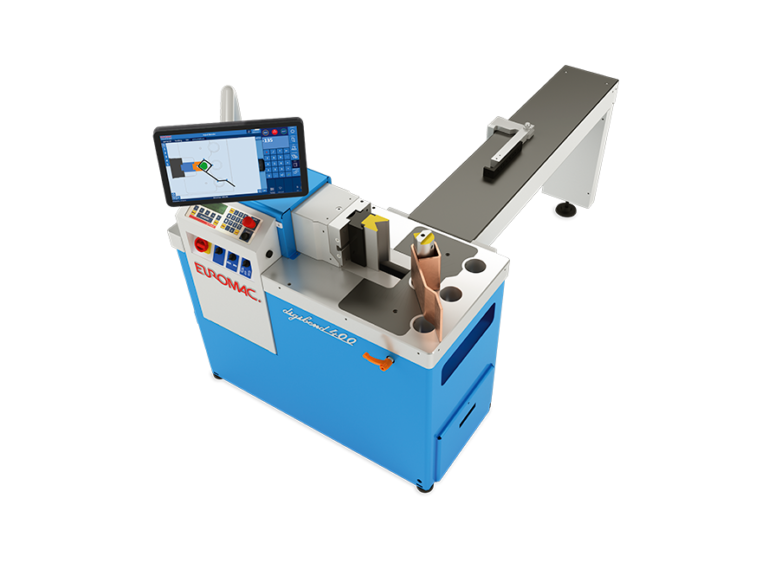

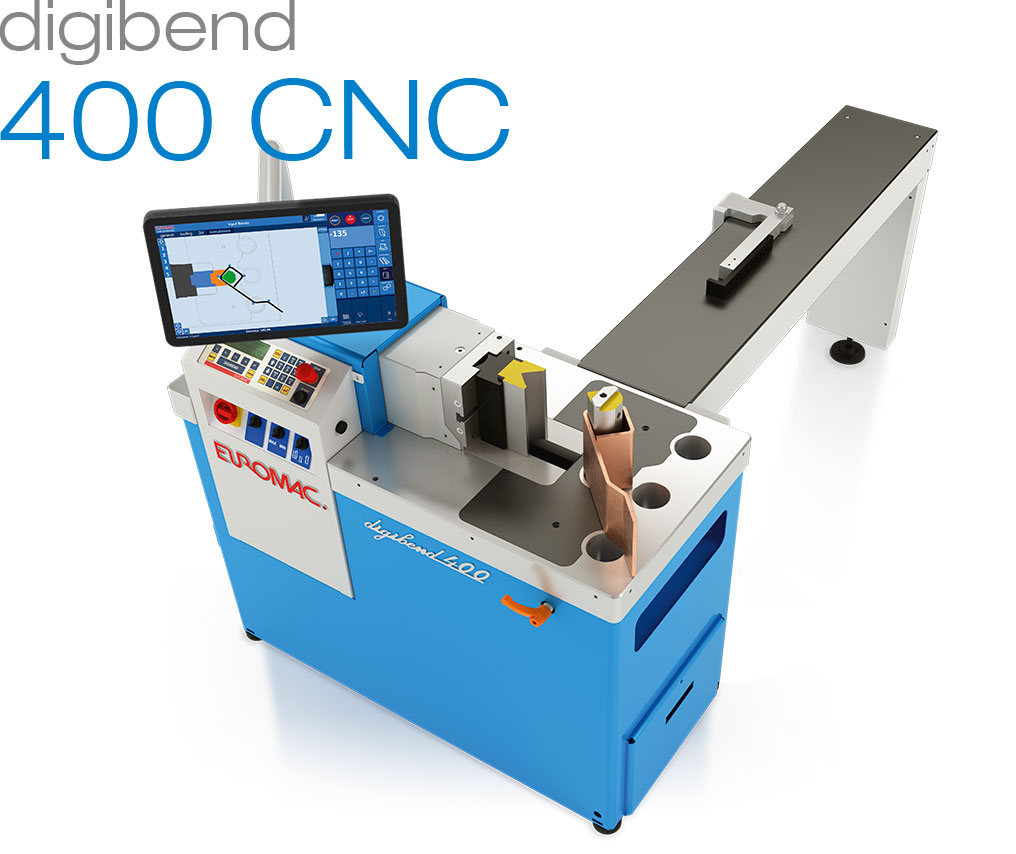

The Digibend table is a machined out of a single monoblock of Meehanite® 700N/mm2 (no welding points), the cylinder is completely embraced in the structure and the RAM is guided in all its stroke in order to be able to maintain the highest accuracy even in the high tonnage demanding applications. The strong structure combined with the unique control system and the specifically designed hydraulics ensure the repeatability accuracy (0,05 mm) even after thousands of bends.

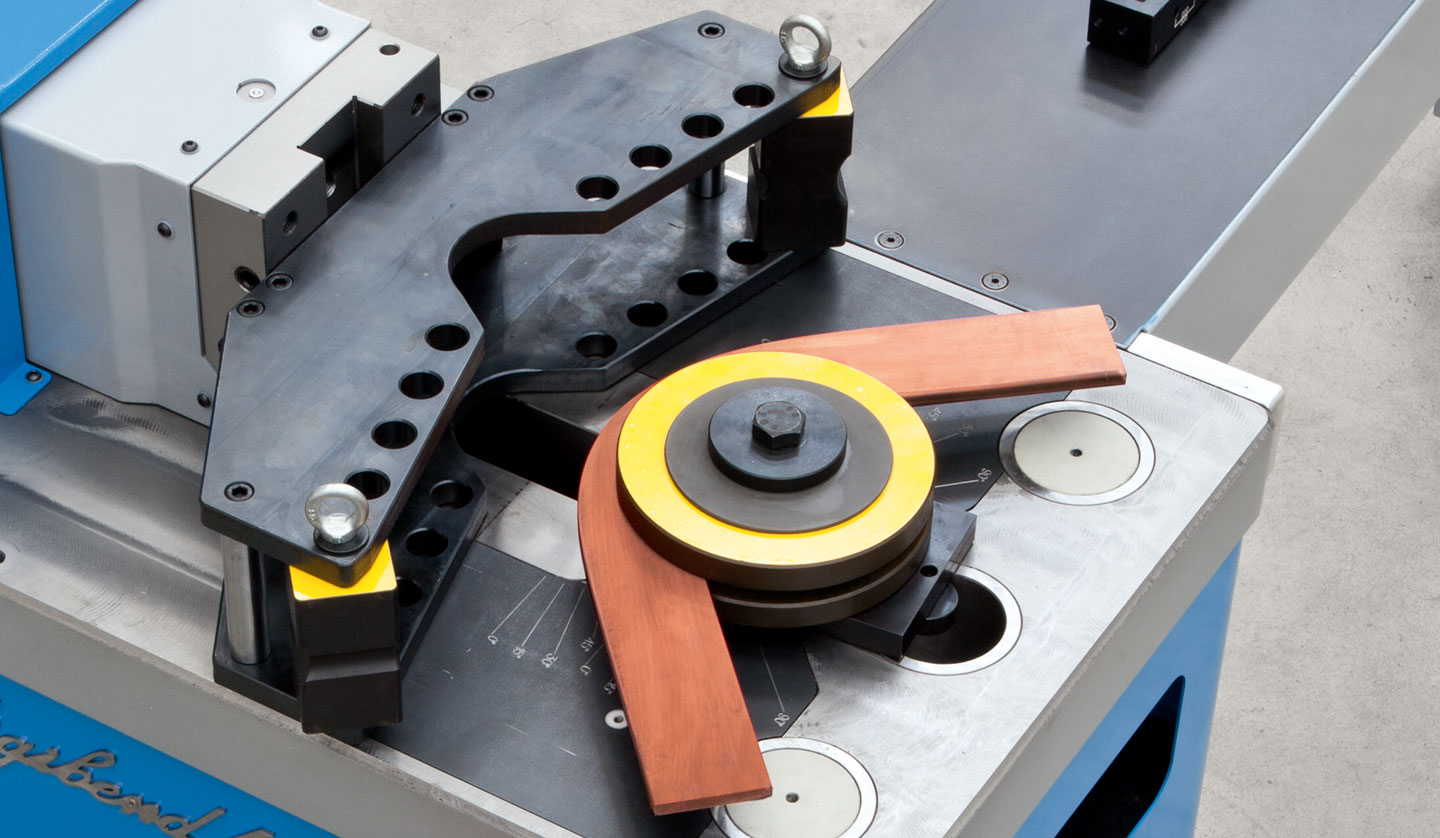

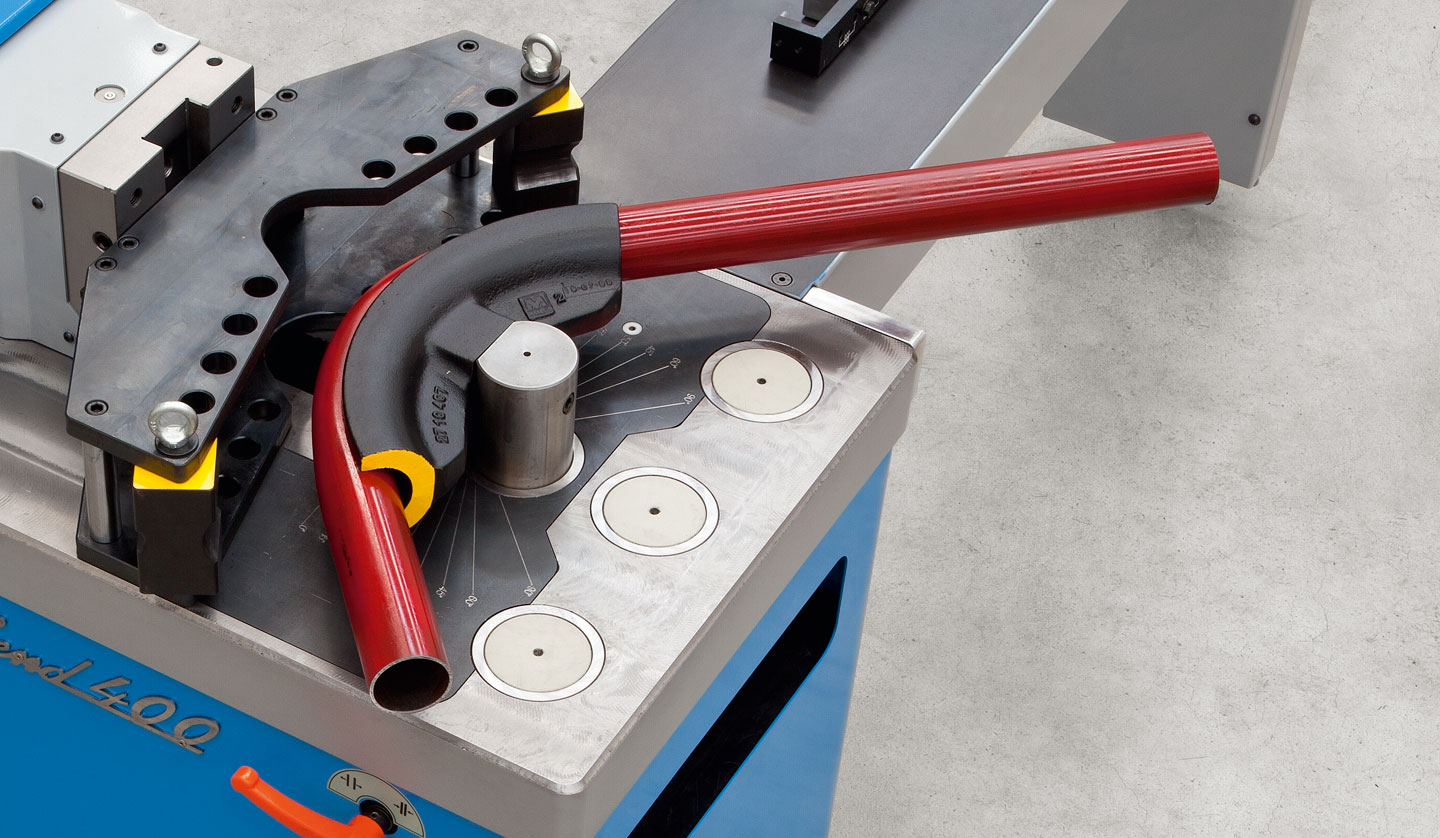

The flexible and strong design of the Digibend table (with antimarking treatment) together with the easy to use control system (2 axis CNC controlled) allows any customer to create their own custom tools for special applications.
Tools
FMTE 10
- 8 tools up to Ø 12,7 mm (A Type)
- 2 tools up to Ø 24 mm (FMTE6 Type)
- Adjustable punch length up to 9 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 6 mm
- Antimark magnetic kit option
- Adjustable striping spring force according to material and thickness
FMTE 4
- 4 tools up to Ø 31,7 mm (B Type)
- Adjustable punch length up to 11 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 12,7 mm
- Adjustable striping spring force according to material and thickness
Video
Playlist
Optionals
Combined brushes and balls tables
Our tables are equipped with Brushes to evitate to mark the sheet during the moving,we can make a combination with balls, recomended in case of sheets over 50 kg.
Roller conveyor for ejecting parts
Roller conveyor 1000×1200 for ejecting parts from the chute door with settable length up to 4000mm c/w plastic box with wheels 570×370 H.210.
