Automated Electric press brake
Technology
Off-line office programming, easyand intuitive.
Plan your work production regardless of the number of pieces. With our cell it will be easy and fast to launch any production avoiding the teaching phase.

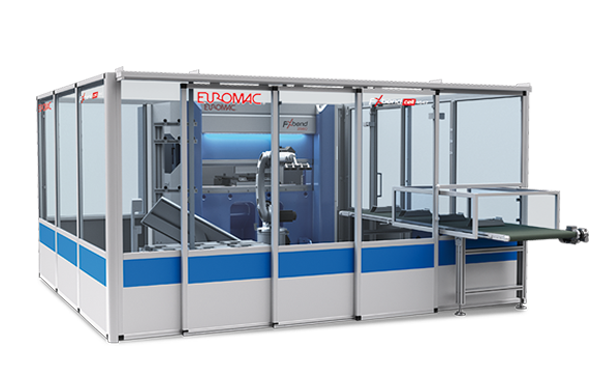

Integrated structure between machine and robot.
The system originates as unique element, with integrated robot
as part of the structure of FX bend itself. An automated compact
production cell is optimised with a small foot print.
System completely realized by Euromac.
Euromac provides a complete solution, designing and
developing every single element of the structure, from the
machine and the robot integration, to the software that runs the
production. A complete, reliable and friendly-use system.

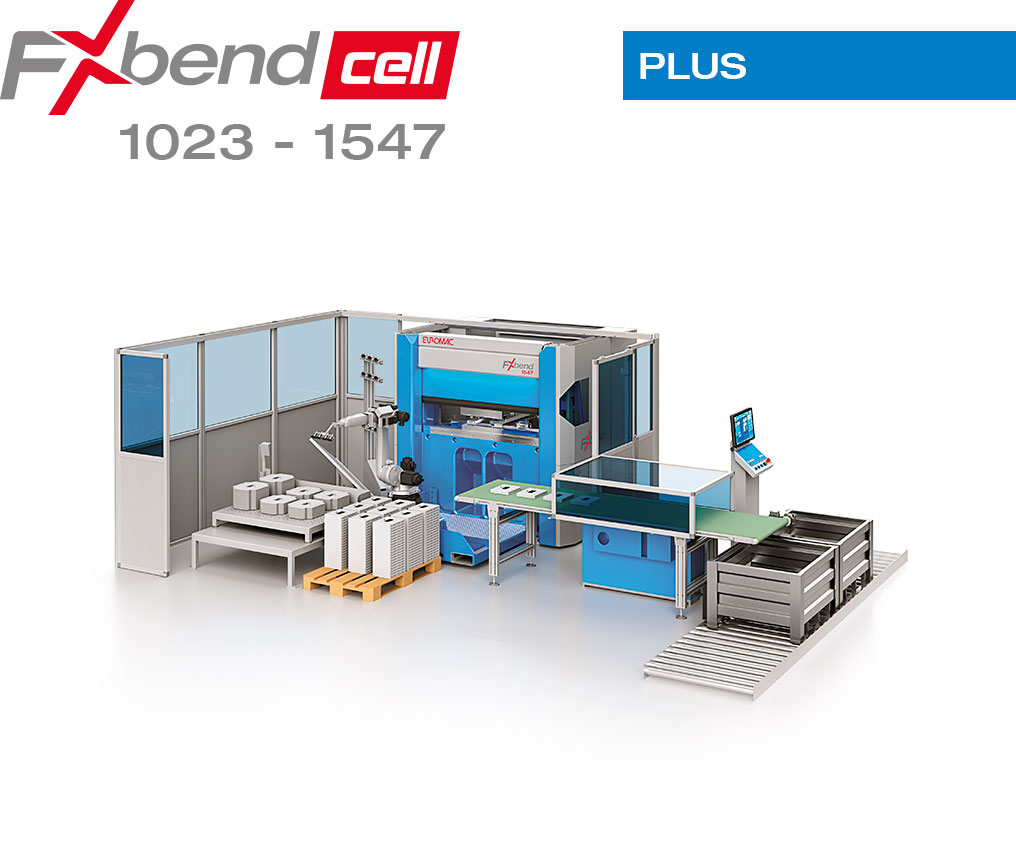

The cell is integrated by:
• Fx Bend with 6-axes backgauge
• Robot Kuka KR10 cybertech nano
• Base of the robot integrated into the machine
• Turnover system
• Double part control
• Loading station with 2 tables of 1200 x 800 mm
Unloading:

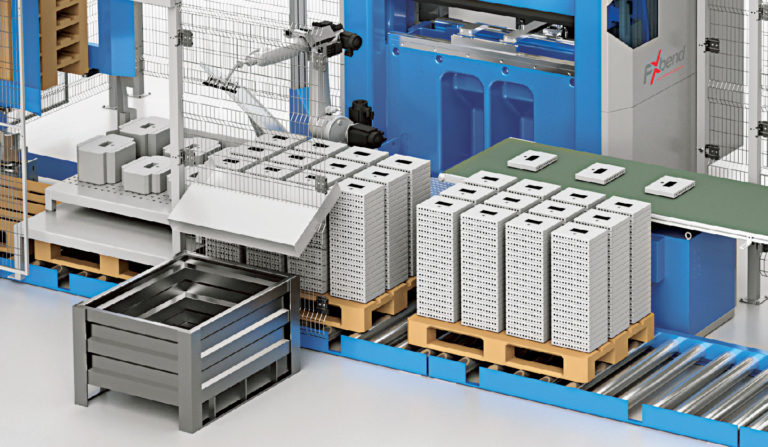

• Palletization on a Europallet

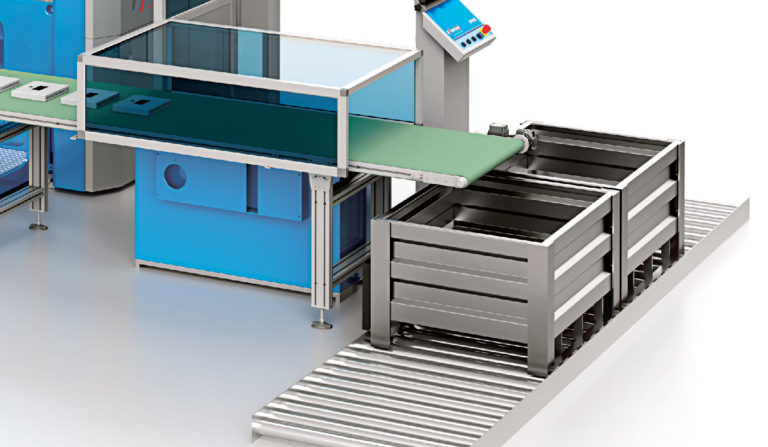

• Automatic belt conveyer for unloading into a box (optional).
Tools
FMTE 10
- 8 tools up to Ø 12,7 mm (A Type)
- 2 tools up to Ø 24 mm (FMTE6 Type)
- Adjustable punch length up to 9 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 6 mm
- Antimark magnetic kit option
- Adjustable striping spring force according to material and thickness
FMTE 4
- 4 tools up to Ø 31,7 mm (B Type)
- Adjustable punch length up to 11 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 12,7 mm
- Adjustable striping spring force according to material and thickness
Video
Playlist
Optionals
Combined brushes and balls tables
Our tables are equipped with Brushes to evitate to mark the sheet during the moving,we can make a combination with balls, recomended in case of sheets over 50 kg.
Roller conveyor for ejecting parts
Roller conveyor 1000×1200 for ejecting parts from the chute door with settable length up to 4000mm c/w plastic box with wheels 570×370 H.210.
